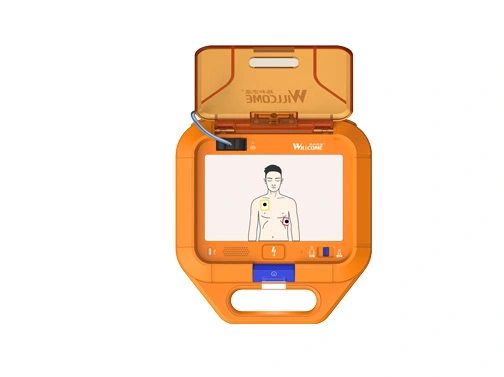

Automated External Defibrillator (AED)

Automatic external defibrillator: A medical device for cardiac arrest patients that is able to detect heart rhythms and deliver an electric shock to restore a normal rhythm if needed.It is also a First aid equipment for public places,Even people who are not medical professionals can use it simply and intuitively to save precious lives.


Get A Quote Get A Quote Get A Quote
Features

Features of Automated External Defibrillator (AED)

  • Light and compact, firmly durable

    IP55 dustproof and waterproof, effectively isolate dust, water damage to the machine, in the relatively harsh environment can also implement rescue.

    The operating temperature is -10°C-50C, and after entering the -20°C environment from the room temperature environment, it can work for at least 60 minutes, covering different climate and terrain environmental conditions.

    The six sides of the machine can withstand the impact of 1.5 meters, and easily cope with unexpected situations such as falls and accidental falls.

    Weighing only 1.5Kg, it is lightweight and easy to carry, even for children, making rescue faster.


Features of Automated External Defibrillator (AED)


  • Efficient and fast

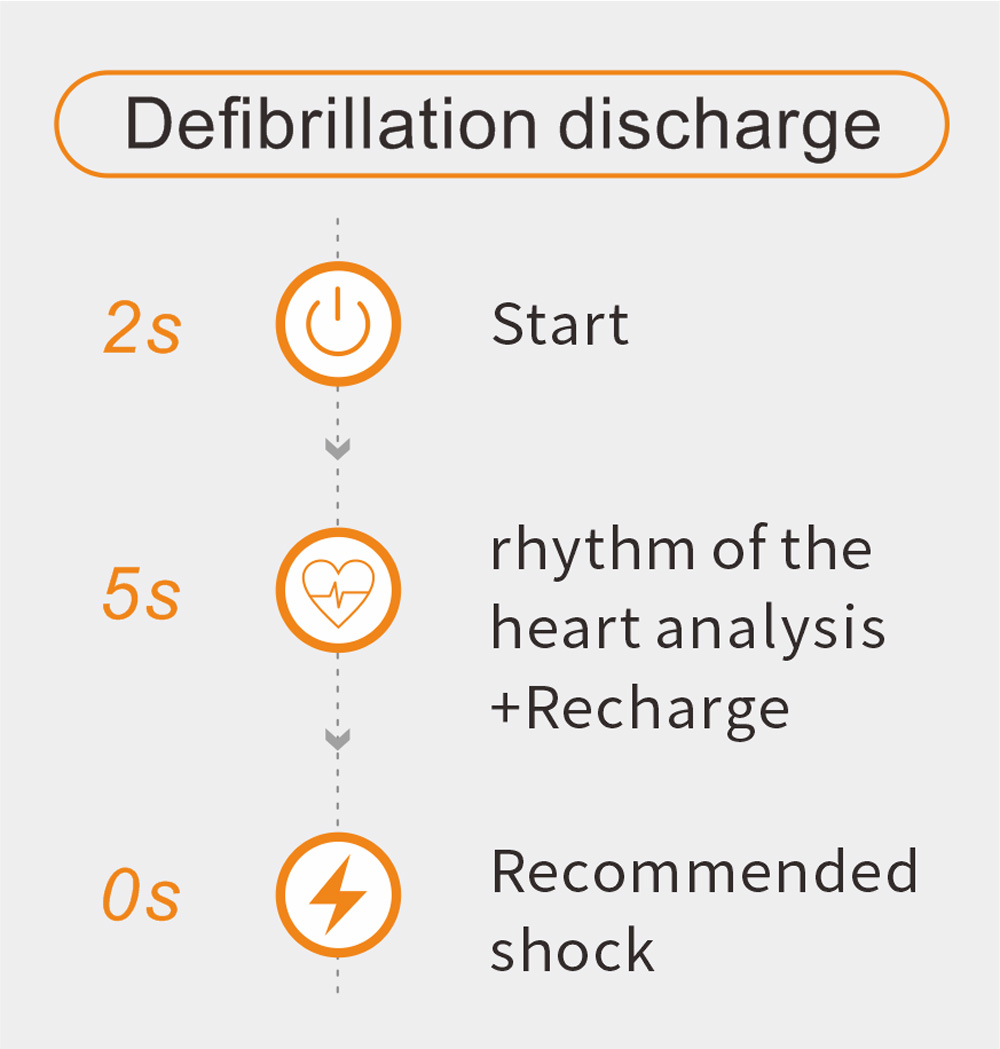

    When a patient goes into cardiac arrest, the golden time for rescue is only four minutes, and every minute counts WILLCOME AED synchronizes intelligent pre-charging during heart rate analysis, shortens the time of startup and heart rate analysis. The whole process from startup to charging is no more than 7 seconds, and the discharge can be carried out immediately when the heart rate analysis is completed.


Features of Automated External Defibrillator (AED)


  • Simple to use, clear

    Exclusive 7" large color screen ",

    Clear animations guide each step

    The pre-connected electrode piece is universal for adults/children, saving time and trouble

    Support both Chinese and English

    Open the cover and turn on,

    In line with the rescuer's intuitive design

    Adult and child mode switch with one click,

    Defibrillation energy and press frequency are automatically adjusted

    Supports semi-automatic and fully automatic modes



Features of Automated External Defibrillator (AED)


  • Advanced cardiopulmonary resuscitation(CPR)assistance

    Real-time CPR beat command, voice animation prompts, guide the rescuer's chest pressing essentials,improve the efficiency and success rate of rescue.


Features of Automated External Defibrillator (AED)





Specification

X1X3s2
Adult/Childone click exchangeone click exchangeone click exchange
Max Defibrillation Energy150J150J360J
Charge time7s7s7s
Guidancelndicator lightVoice guideAnimation presentation
LanguageChinese/EnglishChinese/EnglishChinese/English
Color screen/Yes (4”)Yes (7”)
Waterproof gradelp55lp55lp55
Daily self-testYesYesYes
Battery standby(years)555
Host life (years)10105
Data Transfer AreaOptionalOptionalOptional
Quick operation guideYesYesYes
Status lndicatorlightYesYes/
Data outputWiFi-4GWiFi-4GWiFi-4G
Working Temp range-10℃~50°℃-10℃~50℃5℃~55℃
Weight1.5kg1.5kg2.3kg


Materials

Materials of Automated External Defibrillator (AED)

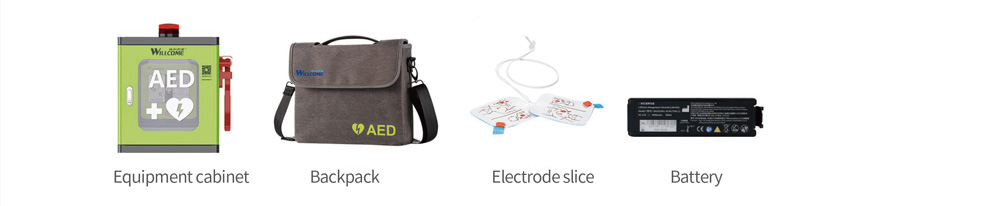

Automatic external defibrillator (AED) accessories:


Materials of Automated External Defibrillator (AED)

Applications

Applications of Automated External Defibrillator (AED)

Application
Application

The product is used in a public or medical setting and should be used by a qualified person trained in CPR and AED use, or a qualified medical worker trained in a basic/advanced life support course, or dispatched in an emergency center,Use under the guidance of personnel.

Instruction

Instruction of Automated External Defibrillator (AED)

Open the Cover and Start
01
Open the Cover and Start

Open the cover while the power automatically turns on, voice command starts,immediately guide you how to operate the AED.

Electrode Patch
02
Electrode Patch

Once the electrode is attached according to the position indication on the electrode, the AED immediately begins the heart rhythm analysis.

Press the Shock Button
03
Press the Shock Button

lf the AED voice prompts you to press the shock key, press the key,and the AED immediately gives the patient an electric shock.

Note
04
Note

200J works for many people, but does not work for everyone. 360Jworks while 200J failed.
